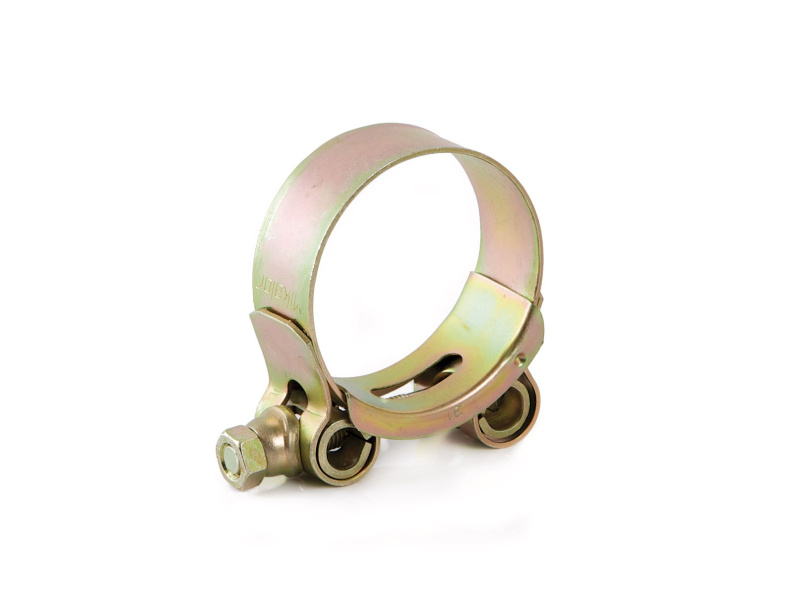

Lifter Hose Clamp 23mm-25mm
Water Lifter Hose Clamp 23mm-25mm
Designed to suit the demands associated with Water Lifter Suction Hoses this tough durable Hose Clamp fits around the water lifter hose securing it tightly to the Tailpipe or clamping fittings such as Foot Valves or Strainers to the end of the Water Lifter Hose.
These Stainless Steel heavy duty Hose Clamps feature a revolutionary swivelling bridge which allows it to be mounted in positions that would be considered awkward for hose clamps. It can be opened up and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier.
Thanks to the beveled edges, the hose is protected from damage. It also features a high strength bolt designed especially for this Hose Clamp, together with the captive nut and spacer system allow you to clamp the most demanding of hose assemblies. This is the clamp of choice for professionals in the industrial hose, automotive and agricultural machinery sectors as well as in all industrial applications where an outstanding and above all reliable heavy-duty clamp is required.
Band and Bridge: : X6Cr17 Stainless steel (DIN 1.4016)(AISI-430)
Bolt: Qst 36-3 Mild steel (DIN 1.0213) Silver-white Cr3 Zinc-plated
Application Ø | r | e | a | b | Max. Values Torque (Nm) |
Max. Values Pressure (Bars) |
---|---|---|---|---|---|---|
23 - 25mm 29/32 - 1" |
M6 | 8 | 18+02 | 19,8 | 10 | 45 |
Datasheets |
---|
