HOW TO MEASURE SIZE

THIS INFORMATION IS RELEVANT TO ALL GASKET TYPES, PLEASE FOLLOW THESE INSTRUCTIONS TO OBTAIN ACCURATE MEASUREMENTS OF THE GASKETS YOU REQUIRE

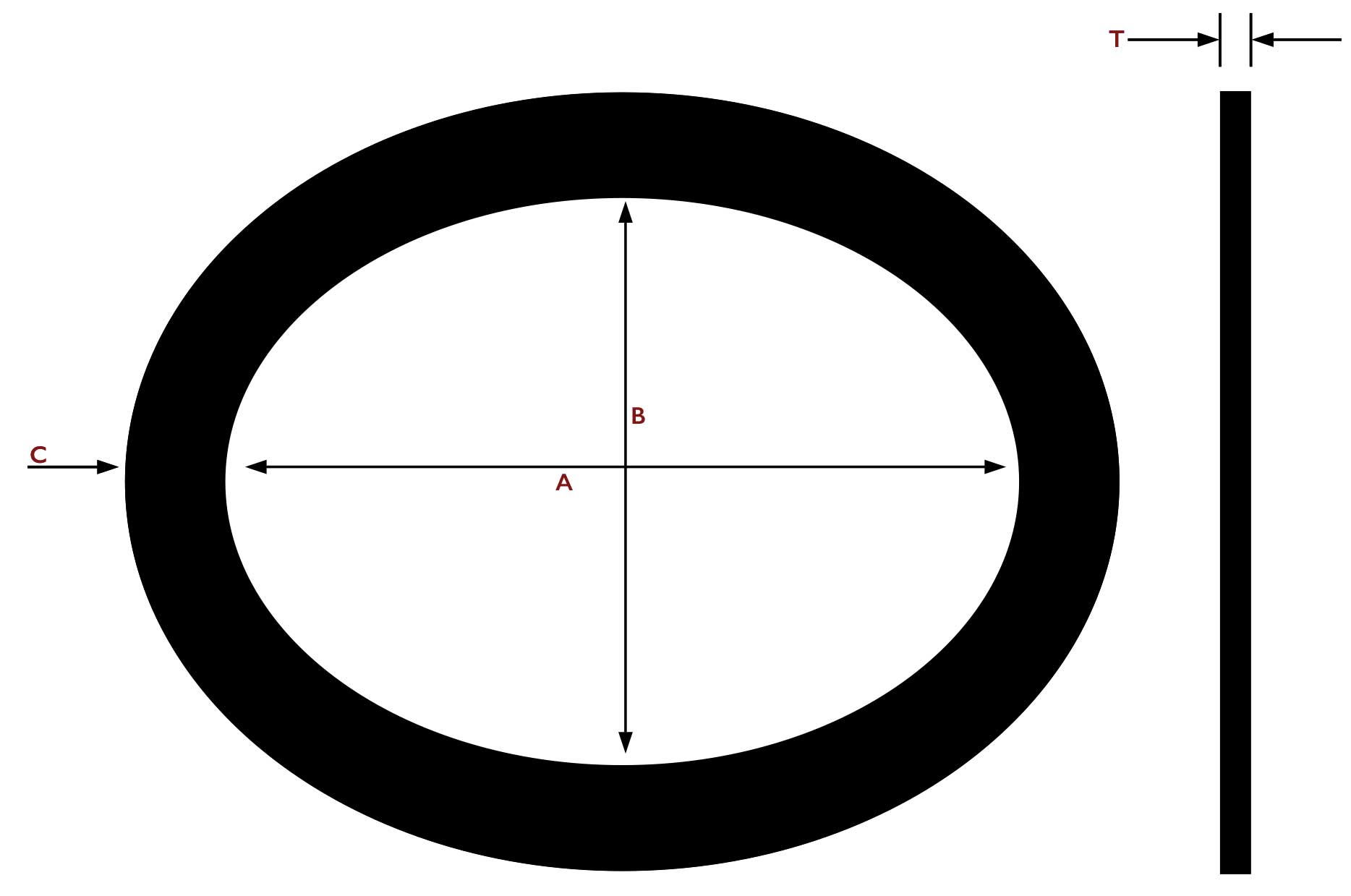

Measurement Key

A:  Major Internal (inches or mm)

B:  Minor Internal (inches or mm)

C:  Flange Width (inches or mm)

D:  Thickness (standard 6mm or Nominal ¹/₄")
