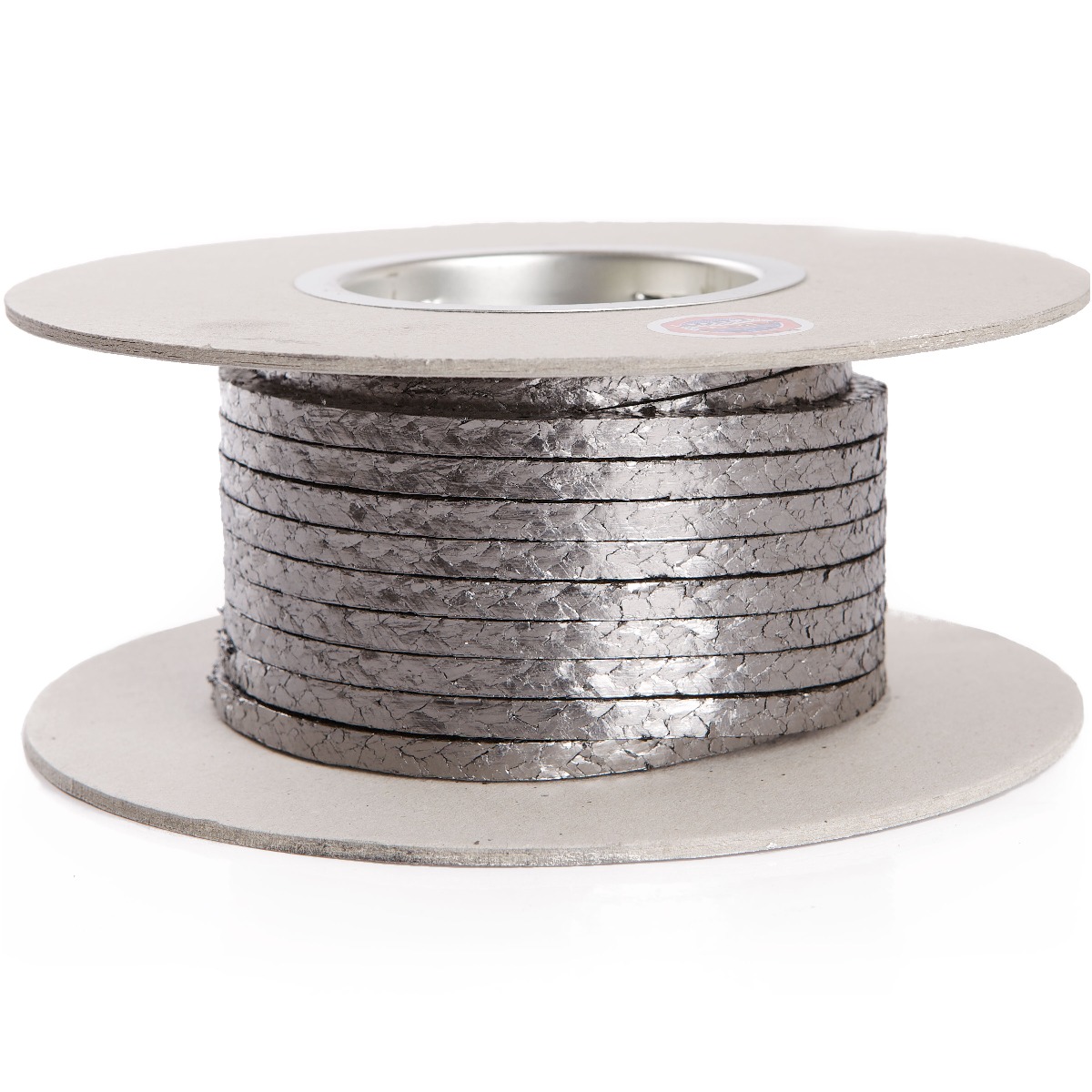

Pilotgraph 4001 Packing

Long sealing life for high temperature high pressure applications
Inclusion of a corrosion inhibitor ensures stainless steel shafts do not suffer pitting
Manufactured from highest quality pure graphite with minimal impurities
High thermal conductivity and low friction properties ensure increased service life
Easy to cut and install so can be used to replace moulded rings resulting in greatly reduced stock and cost

Reciprocating Applications

Speed: 2 m/s (390 fpm)

Temperature range: -200 to +450°C (-330 to +840°F)

Maximum pressure: 200 Bar (3900 psi)

Chemical Compatibilities

For the pH range 0–14, the packing is chemically inert and suitable for steam. It should not be installed in strong oxidising environments such as hot concentrated nitric acid, highly concentrated sulphuric acid and molten alkali metals.
