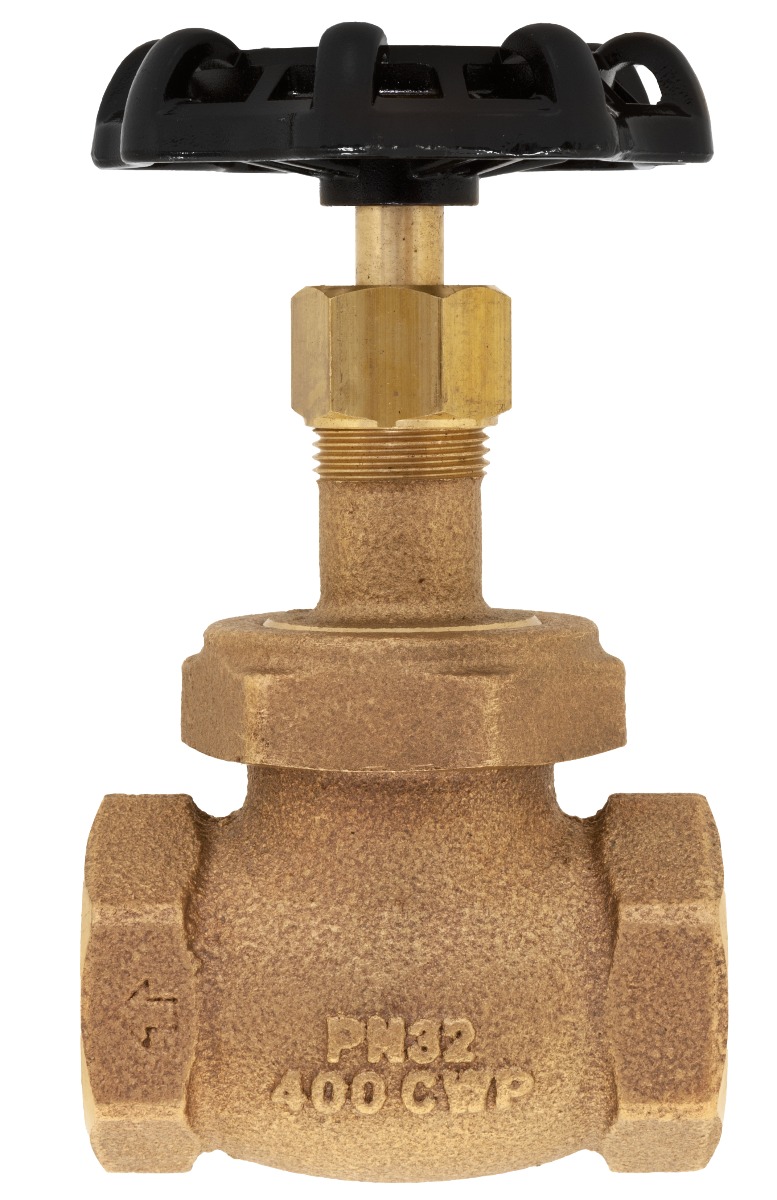

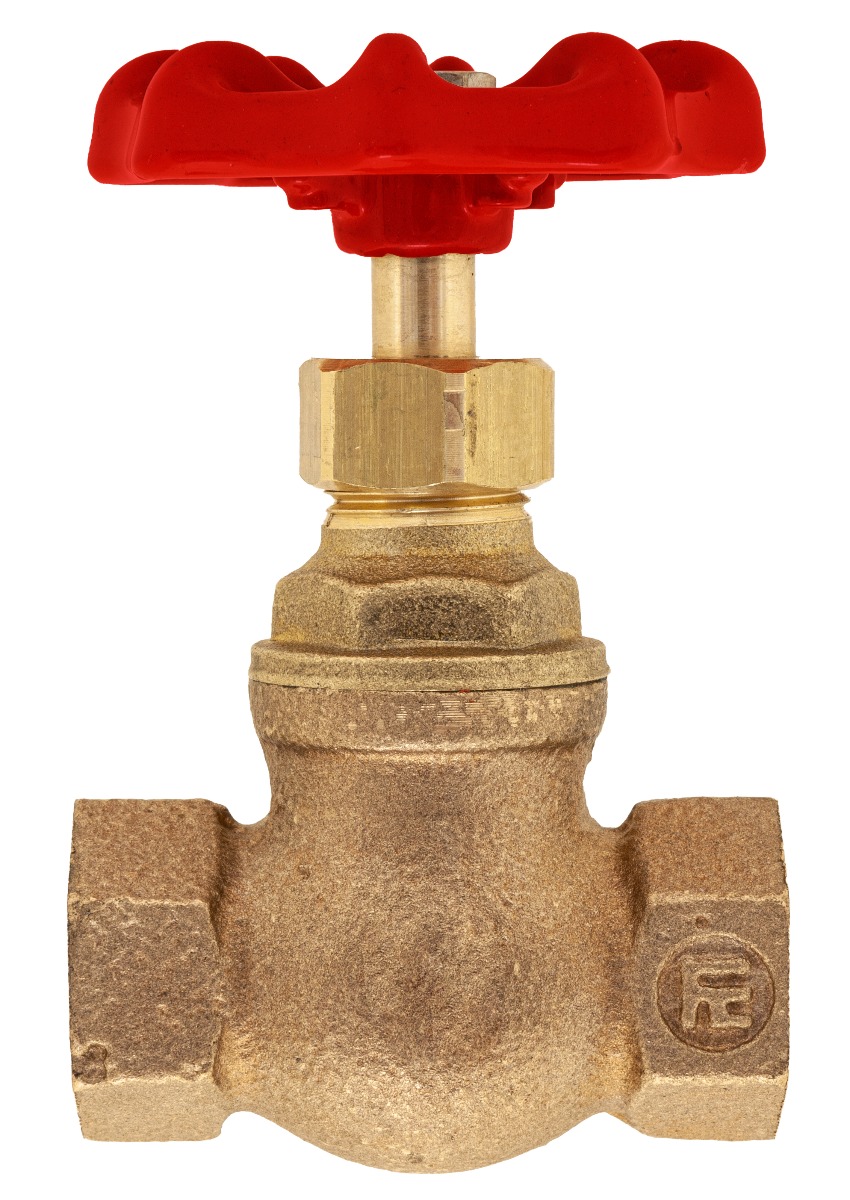

Straight Globe Valves 32 Bar Rated
Features
- Screwed BSP Taper Female
- Bronze Body
- Union Bonnet
- Rising Stem
- PTFE Renewable Disc
- BS 5154B
Temperature & Pressure Ratings
- Max Temperature: 200°C
- Max Pressure: 32 Bar
| No. # | Part Name | Materials |
|---|---|---|
| 1 | Body | Bronze ASTM B62 C83600 |
| 2 | Disc | Bronze ASTM B62 C83600 |
| 3 | Bonnet | Bronze ASTM B62 C83600 |
| 4 | Lock Nut | Brass ASTM B16 C36000 |
| 5 | Stem Packing | Teflon PTFE |
| 6 | Gland | Brass ASTM B16 C36000 |
| 7 | Packing Nut | Brass ASTM B16 C36000 |
| 8 | Stem | DZR |
| 9 | Hand Wheel | Cast Iron ASTM A126 Class B |
| 10 | Wheel Nut | Steel ASTM A563 ZN Plated |
| 11 | Name Plate | Aluminium ASTM B29 1100 |
| 12 | Disc Nut | ⅓–¾" Brass 1–2" Bronze |
| 13 | Disc Teflon | Teflon PTFE |
| 14 | Union Nut | Bronze ASTM B62 C83600 |
Dimensions & Weights
| ¼" | ⅜" | ½" | ¾" | 1" | 1¼" | 1½" | 2" | |
|---|---|---|---|---|---|---|---|---|
| D mm | 50 | 50 | 55 | 60 | 70 | 80 | 80 | 110 |
| L mm | 52 | 55 | 65 | 75 | 85 | 100 | 110 | 135 |
| H mm | 80 | 80 | 90 | 120 | 140 | 165 | 170 | 220 |
| Kg | 0.32 | 0.32 | 0.46 | 0.88 | 1.35 | 1.90 | 2.35 | 4.00 |
