Brass Spring Check Valve
Features
- Screwed BSP Parallel
- Body - Brass
- Disc - Acetal
- Spring - Stainless Steel
Pressure / Temperature Rating
- 3⁄8"–1" 16 Bar
- 1¼"–2" 10 Bar
- 2½"–4" 8 Bar
Working Temperature
- 0°C to +90°C
Working Temperature
- 0°C to +90°C

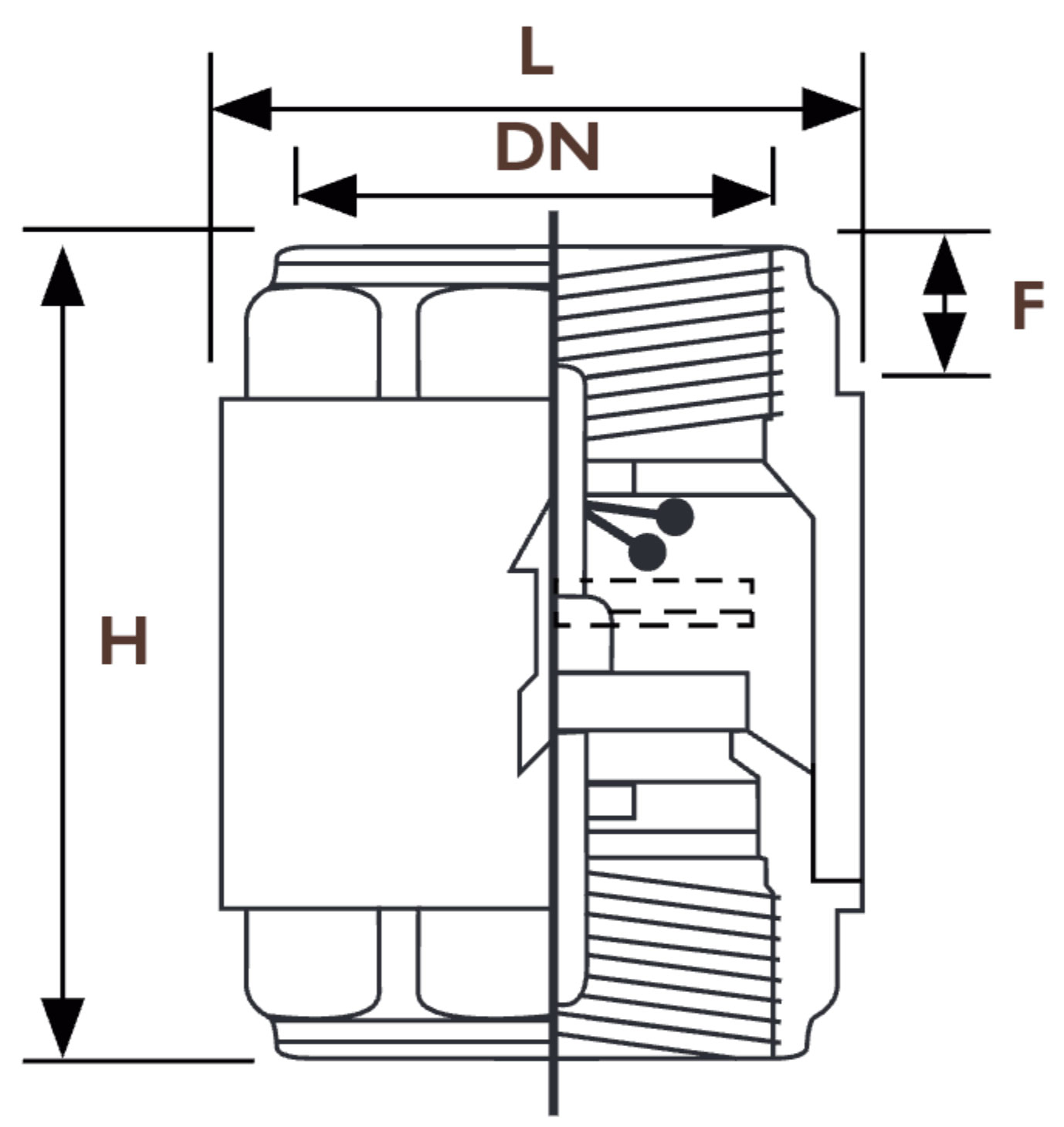

Dimensions and Weights
| DN Inch |
⅜ | ½ | ¾ | 1 | 1¼ | 1½ | 2 |
|---|---|---|---|---|---|---|---|
| F mm | 12 | 12 | 14 | 15 | 14 | 15 | 14 |
| L mm |
29 | 30 | 37 | 44 | 56 | 63 | 78 |
| H mm |
46 | 48 | 53 | 59 | 66 | 71 | 80 |
| kgs | 0.08 | 0.10 | 0.15 | 0.24 | 0.35 | 0.43 | 0.75 |
