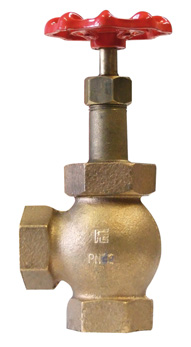

Angled Globe Valves GL32
- Threaded BSP Parallel
- Brass Seat and Disk
- Rising Stem
- Union Bonnet
- Handwheel Operated
Temperature & Pressure Rating
Manufactured in accordance with BS 5154 PN 32 Series B
32 Bar from -10°C to +100°C
14 Bar at 198°C

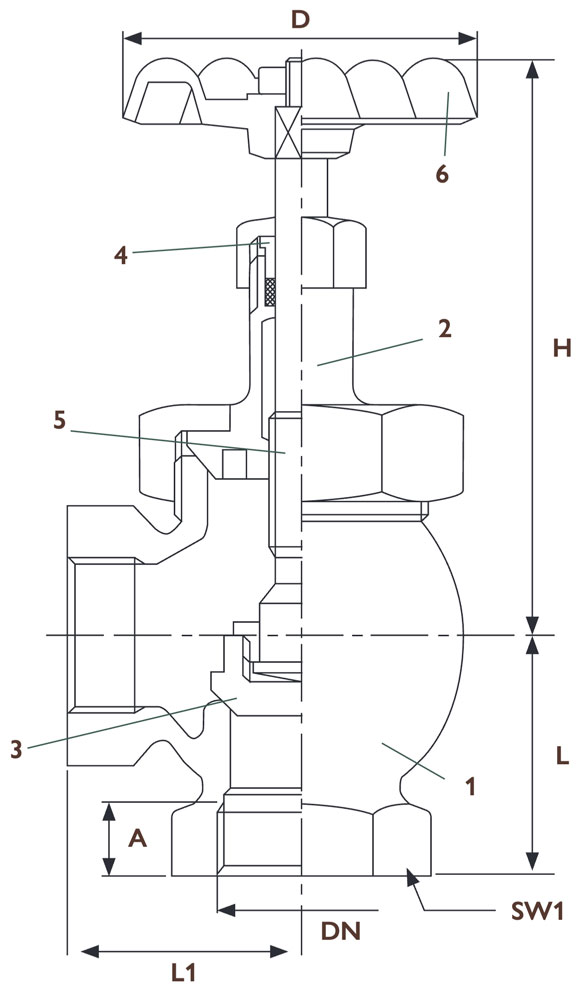

| Part Name | Materials | UN | |
|---|---|---|---|
| 1 | Body | Bronze | UNI EN1982 |
| 2 | Bonnet | Brass (1" is Bronze) | UNI EN12164 |
| 3 | Disc | Brass | UNI EN12164 |
| 4 | Gland Packing | Brass | UNI EN12164 |
| 5 | Stem | Bronze | UNI EN1982 |
| 6 | Handwheel | Aluminium-GD12FE | UNI EN1706 |
| DN Inch | ¼ | ⅜ | ½ | ¾ | 1 |
|---|---|---|---|---|---|
| L mm | 23 | 29 | 34 | 40 | 45 |
| L1 mm | 24 | 30 | 35 | 41 | 48 |
| A mm | 10 | 10 | 13 | 15 | 15 |
| SW1 mm | 20 | 25 | 28 | 36 | 45 |
| H mm | 80 | 90 | 100 | 120 | 150 |
| D mm | 50 | 50 | 55 | 60 | 70 |
