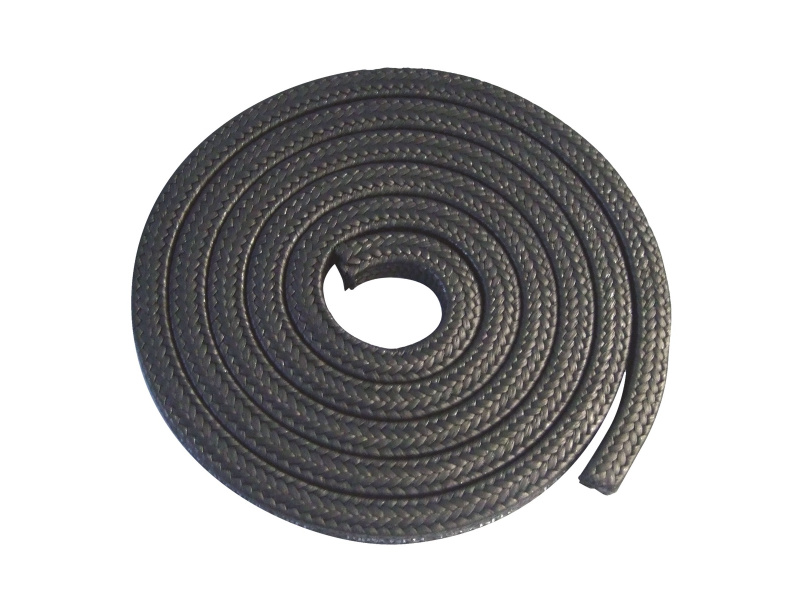

Klinger 49 9.5mm x 2m

Excl. VAT:	£71.64
Incl. VAT:	£85.97
Brand:	Klinger
Product Code:	50-469-2M
Quantity:

Description
Details

Klinger 49 offers effective and trouble free sealing during application. Manufactured from PTFE filaments that have been specially treated to incorporate a graphite based lubricant. The Klingerlock braiding process is used.

PTFE is extremely resistant to a wide range of chemicals and rapidly disperses heat due to its graphite infusion.

K49 is clean to handle and requires only minimal gland loading to effect a seal. It’s WRC approved for use in potable water applications.

Klinger49 is suitable for use as a general valve and pump packing within many industries, for example;

Water Industry
Distilleries
Pulp & Paper Mills
Breweries
Petrochemical Plants
Chemical Processing
Refineries

K49 has WRAS approval for use with potable water.

Minimum operating Temperature	-240°C
Maximum operating Temperature	280°C
Maximum steam temperature	280°C
pH	0–14
Maximum static pressure	250 bar
Maximum dynamic pressure	20 bar
Maximum recip. pressure	200 bar
Maximum running speed	18 m/s

Note: The packing should not be subjected to the maximums of temperature, pressure and speed simultaneously, for further advice please contact our technical department.
