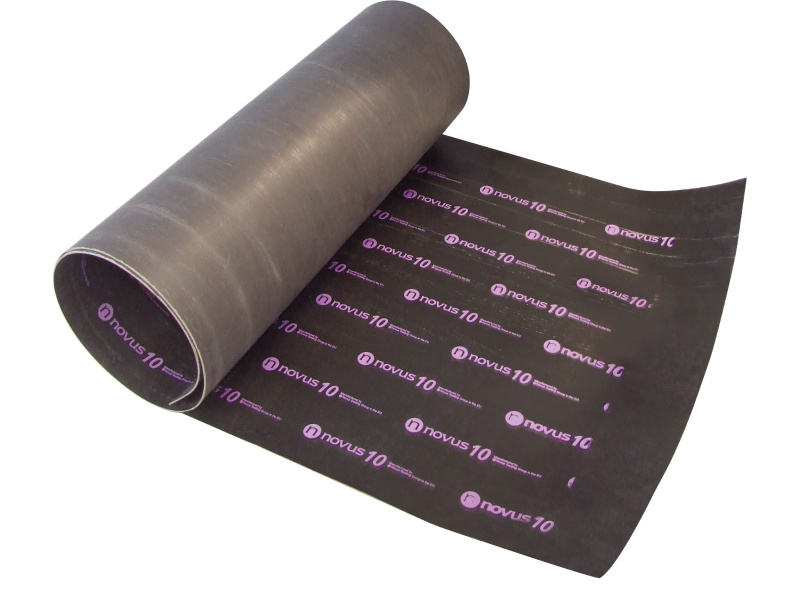

Novus 10 Gasket Jointing - 1.5m x 1m x 3mm Thk
Novus 10 Gasket Sheet Jointing - 1.5m x 1m x 3mm Thk
Novus 10 Gasket Sheet Jointing is a universal grade gasket sheet jointing that's designed to be especially suitable for using under conditions where there is an alkaline presence.
It also has an excellent creep resistance and is suitable for oils, fuels and refrigerants. Premium quality carbon fibre reinforced material, with a high quality Nitrile rubber binder.
Max. Temperature: 425°C
Max Pressure: 100 Bar
Typical Physical Properties
| Thickness | 1.5mm | |
|---|---|---|
| Density | 1.57g/cc | |
| Tensile Strength | ASTM F152 | 13MPa |
| Compression | ASTM F36 | 11% |
| Recovery | ASTM F36 | 62% min |
| Residual Stress | BS 7531 (300°C) | 25MPa |
| Gas Leakage | BS 7531 | <1.0cc/min |
| ASTM Oil 1 | Thickness Increase | 1.0% |
| IRM 903 Oil | Thickness Increase | 2.5% |
| ASTM Fuel B | Thickness Increase | 2.5% |
| Datasheets |
|---|
