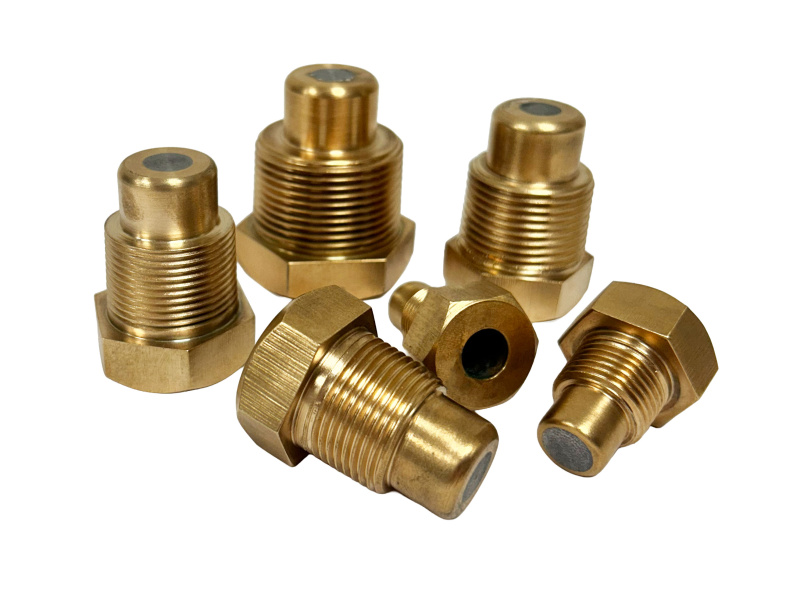

Standard Leaded Fusible Plug
Fusible Plug manufactured in Gunmetal with a lead core. The melting point of lead is 327 deg C. These plugs are cold water tested to 45BAR.
 |
|||||
|---|---|---|---|---|---|

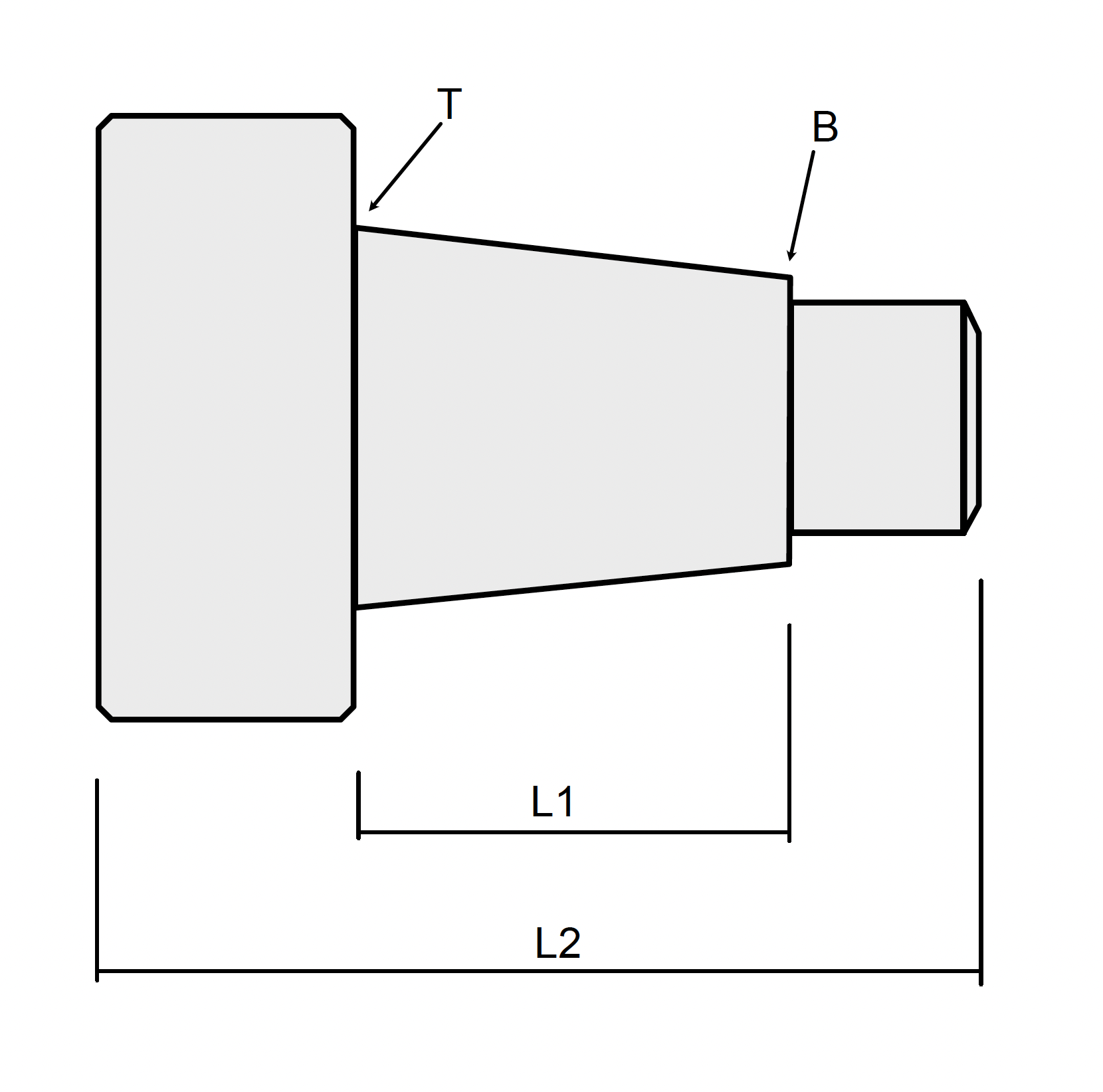

| SKU | Thread | T | B | L1 | L2 |
| (Top of Thread) | (Bottom of Thread) | (Thread Length) | (Overall Length) | ||
| FUS-PLUG-3/8 | 3/8" BSPT | 0.666" | 0.635" | 14mm | 39mm approx |
| FUS-PLUG-1/2 | 1/2" BSPT | 0.825" | 0.810" | 14mm | 39mm approx |
| FUS-PLUG-3/4 | 3/4" BSPT | 1.040" | 1.115" | 20mm | 47mm approx |
| FUS-PLUG-7/8 | 7/8" BSPT | 1.195" | 1.155" | 22mm | 50mm approx |
| FUS-PLUG-1 | 1" BSPT | 1.320" | 1.275" | 24mm | 53mm approx |
| FUS-PLUG-11/4 | 1 1/4" BSPT | 1.655" | 1.605" | 27mm | 57mm approx |
This is a safety device and the end-user must ensure the plug is suitable and adequate for the required application.
| Datasheets |
|---|
Related Products

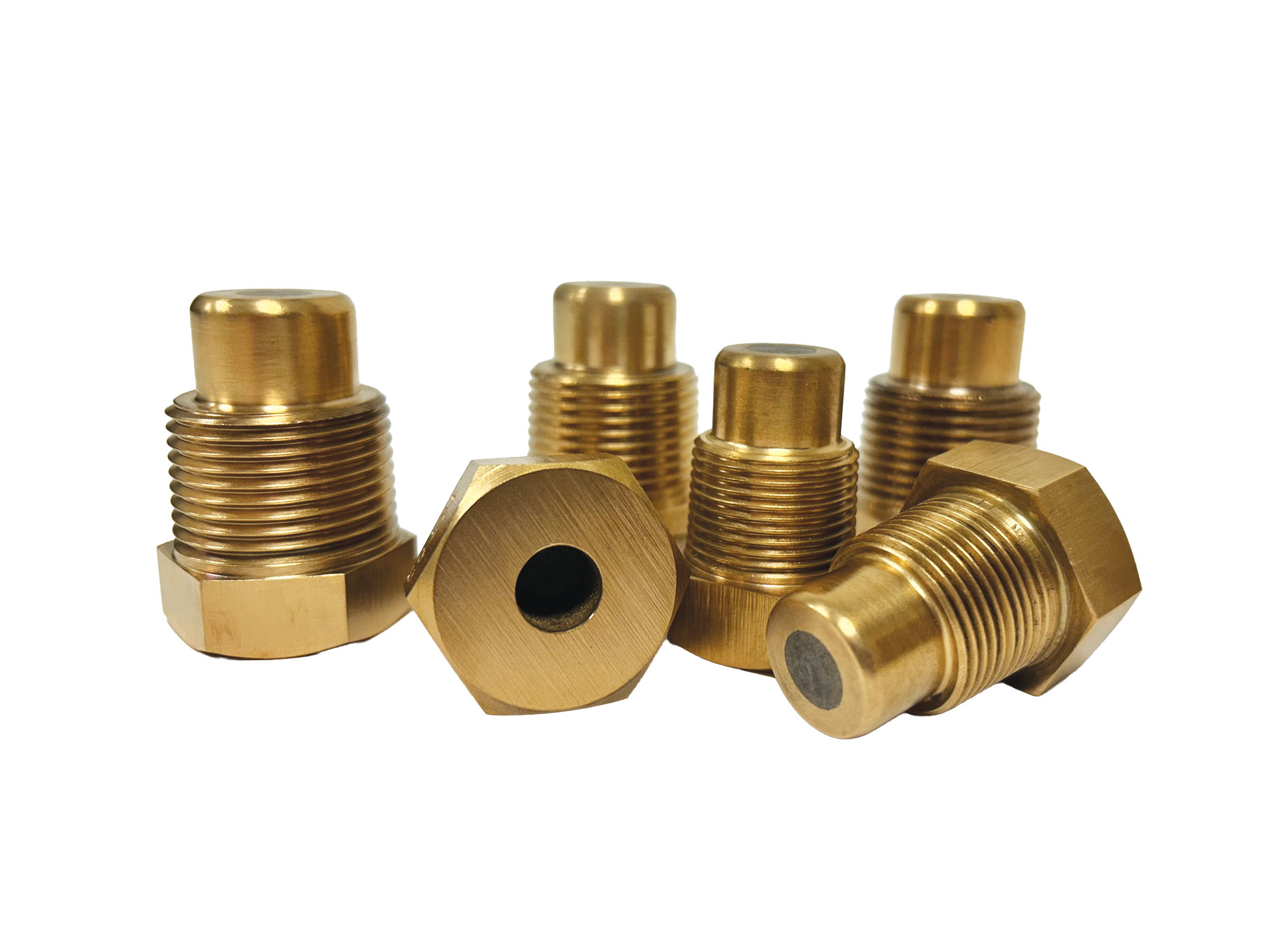

Standard Leaded Fusible Plugs (Oversized)
