2 1/2" Fig 542L Safety Valve

Excl. VAT:	£1,331.87
Incl. VAT:	£1,598.24
Brand:	Nabic
Product Code:	NAB-542L-65
Quantity:

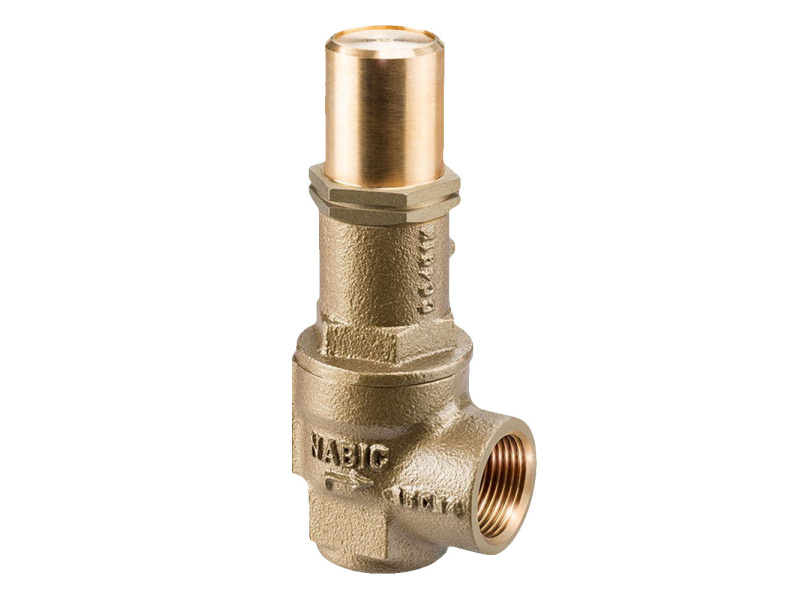

2 1/2" Fig 542L Nabic Safety Valve - DN65
2 1/2" BSPP Female Inlet x 2 1/2" BSPP Female Outlet
The NABIC Fig 542L has been designed primarily for use where high tightness is required on the discharge side, having a sealed spring cover to prevent the possibility of back pressure leakage through the top of the valve.

The lift is progressively proportional to flow. All wetted parts are manufactured from dezincification resistance materials. Designed and tested to BS EN ISO 4126 -1.

Designed for use with Hot water, steam, compressed air, inflammable liquids and inert gasses, CO2 (to 20°C), ethylene glycol and potable water

High discharge capacity.
Pressure tight on discharge side
Suitable for liquids and inert gases
WRAS Approved

Pressure & Temperature Ratings

Set Pressure	Temperature
0.3 - 10.5 bar	-20°C - 195°C

Dimensions & Weights

SIZE DN	Rp BSP inlet & Outlet	A (mm)	B (mm)	C (mm)	Weight (Kg)
65	2 1/2"	76	55	285	8.24

Materials

Ref No	Name of Part	Material
1	Leak Proof Dome	Bronze, BS EN 1982 CC491K
2	Locknut	Brass, BS EN 12164 CW609N
3	Dome 'O' Ring	Viton
4	Spring	Chrome Vandium Alloy Steel, BS 2803 735 A50 HS (Stainless Steel, BS 2056 302S26 Opt)
5	Label	Yellow kapton
6	Spring Cover	Bronze, BS EN 1982 CC491K
7	Piston	Brass, BS EN 12164 CW609N
8	Cover Seal	Viton
9	Seat Seal Holder	Bronze, BS EN 1982 CC491K / Brass BS EN 12164 CW602N (DZR)
10	Seat Seal	PTFE (Viton Opt)
11	Starlock Washer	Stainless Steel
12	Body	Bronze, BS EN 1982 CC491K
13	Adjusting Screw	Brass, BS EN 12164 CW609N
14	Spring Plate	Brass, BS EN 12164 CW609N
15	Spindle	Brass, BS EN 12164 CW721R
16	Seat Seal Retaining Plate	Bronze, BS EN 1982 CC491K / Brass BS EN 12164 CW602N (DZR)
17	O-Ring	Viton
