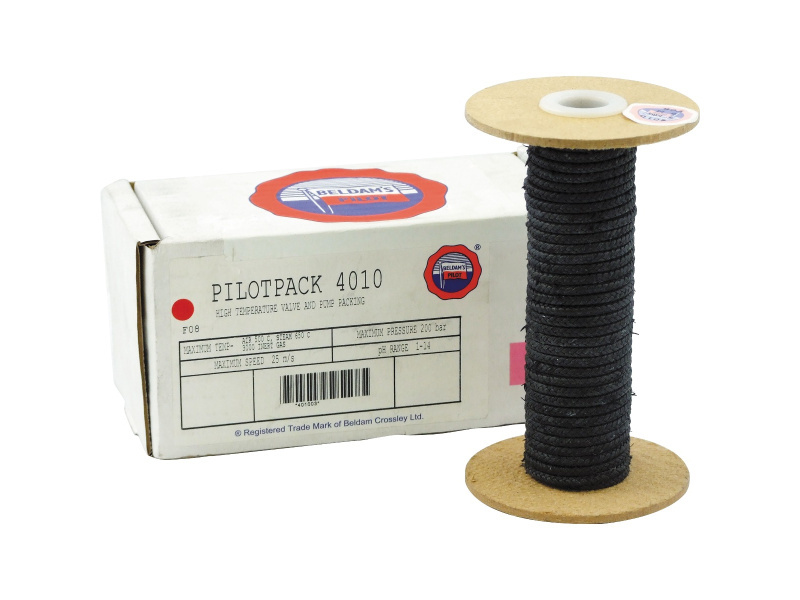

Pilotpack 4010 Graphite PTFE Packing

Pilotpack 4010 is a premium gland packing plaited from fine, high-purity graphite filament yarn and thoroughly impregnated with PTFE. The combination of graphite's inherent high thermal conductivity and self-lubrication with PTFE impregnation produces a resilient, low-friction packing with excellent impermeability and rapid heat dissipation — factors that together ensure a long seal life across a very wide range of demanding applications.

Pilotpack 4010 is suitable for rotating pumps, reciprocating pumps and valves handling hot oils, hydrocarbons, chemicals, solvents and steam — both saturated and superheated — in refineries, petrochemical, power generation and metal processing industries. It is chemically inert across the full pH range of 0–14 and is an ideal choice for all piston and valve rod gland packing. Note: this packing should not be installed in strong oxidising environments such as hot concentrated nitric acid, highly concentrated sulphuric acid or molten alkali metals.

Key Features

• Plaited from high purity graphite filament yarn, thoroughly impregnated with PTFE
• High thermal conductivity and low friction for increased service life
• Rapid heat dissipation — ideal for high temperature, high pressure applications
• Corrosion inhibitor included — prevents pitting on stainless steel shafts
• Chemically inert across pH 0–14; suitable for steam (saturated and superheated)
• Easy to cut and install — can replace moulded rings, reducing stock and cost
• Resistant to extremely high temperatures and a very wide variety of chemicals

Typical Applications

• Piston and valve rod gland packing
• Rotating and reciprocating pumps handling hot oils, hydrocarbons, solvents and chemicals
• Steam valves — saturated and superheated
• Refineries, petrochemical plants, power generation and metal processing industries

Please see the Details tab for full product specifications by application type.
