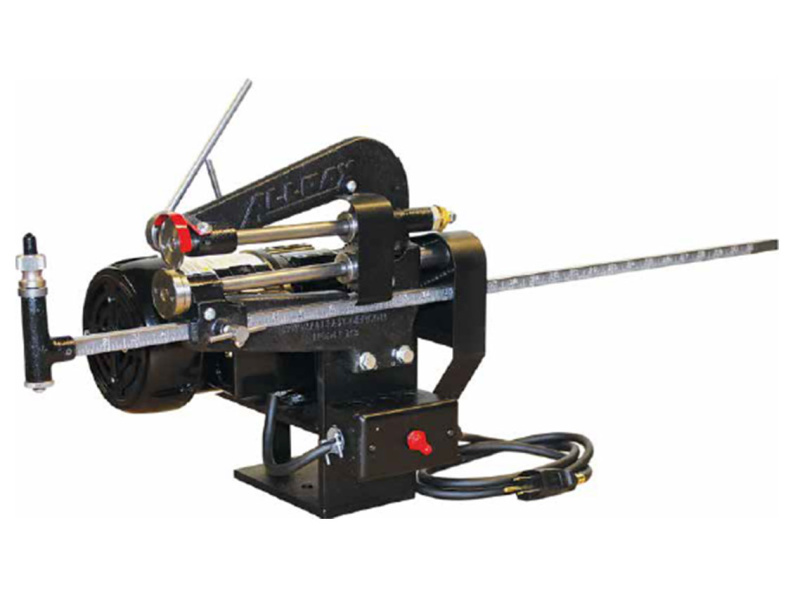

Motorized M3 Rotary-Style Gasket Cutter 230v 50/60Hz

Motorized M3 Rotary-Style Gasket Cutter 230v 50/60Hz

Excl. VAT: £3,334.98
Incl. VAT: £4,001.98
Brand: Allpax
Product Code: ALLPAX-AX7220
Quantity:

Allpax Motorized M3 Rotary-Style Gasket Cutter

230v 50/60Hz

Cut accurate flange and ring gaskets with the Motorized M3 Rotary-Style Gasket Cutter, the perfect tool for fabricating multiple runs of the same-size gaskets quickly and efficiently. Designed primarily for non-metallic gasket materials such as cork, fibre, and rubber, up to ¼" thick. Cuts gaskets with a face width of ¼" to 7"; from 2" I.D. to 62" O.D. Mounts to any workbench with ¼" bolts (not included).

Features

  • Heavy-duty, cast iron frame with 7" throat
  • Precision steel components
  • Durable, heat-treated tool steel, rotary cutting discs
  • 1/6 Horsepower gear motor; 120 VAC
  • Made in USA

Maximum Recommended Material Thickness (Inches)

Gasket Material Thickness
Asbestos 0.125
Cardboard (Flat) 0.250
Cloth Insert 0.188
Cork 0.188
Fiber 0.188
Kevlar 0.010
Rubber 0.188
Teflon 0.125
