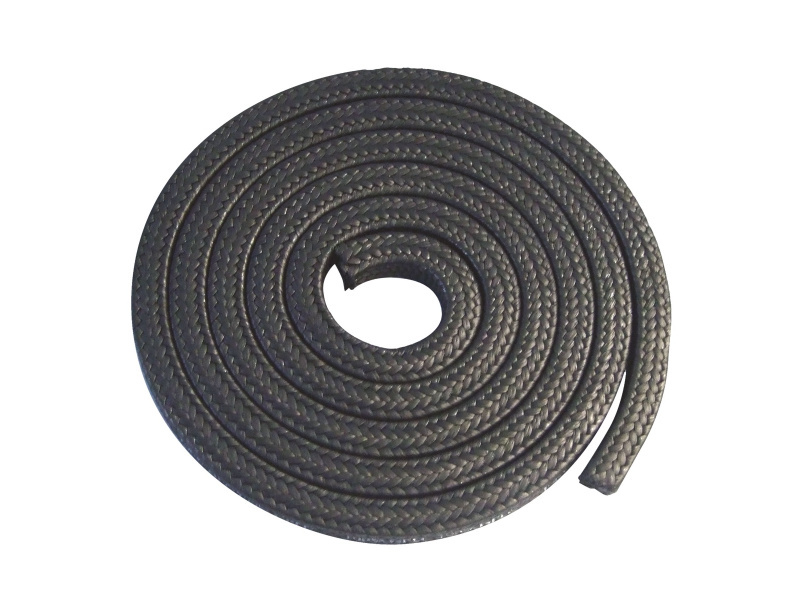

Klinger K49 PTFE Graphite Gland Packing

Excl. VAT:	£17.89
Incl. VAT:	£21.47
Brand:	Klinger
Product Code:	50-
Size & Length
Quantity:

Klinger K49 PTFE Graphite Gland Packing

Klinger K49 is a high performance, multiservice compression packing from the Klinger TopLine range, manufactured using the Klingerlock braiding process from Gore™ GFO® PTFE filaments specially treated to incorporate a graphite based lubricant. The result is a clean, low-friction packing that is virtually resistant to all media including strong acids and alkalis, and which rapidly disperses heat due to its graphite infusion.

K49 requires only minimal gland loading to effect a seal and offers excellent sealing life across a very wide range of valve and pump applications. It holds WRAS approval for use in potable water applications and its wide service capabilities make it an ideal choice for reducing the variety of packings held in stock. Available in a range of sizes and roll lengths to suit most gland requirements.

Key Features

Klingerlock braided from Gore™ GFO® PTFE filaments with graphite based lubricant
Virtually resistant to all media including strong acids and alkalis, pH 0–14
WRAS approved for use with potable water
Rapid heat dispersal due to graphite infusion
Minimal gland loading required to effect a seal
Clean to handle
Wide service capabilities — reduces the variety of packings required in stock
Operating temperature range –240°C to 280°C; steam to 280°C

Typical Applications

General valve and pump packing across a wide range of industries
Water industry and potable water applications
Distilleries and breweries
Pulp and paper mills
Petrochemical plants, chemical processing and refineries

Please see the Details tab for full service capability specifications.

Note: Do not subject packing to maximum temperature, pressure and speed simultaneously.

Available Types

3.2mm — 2m Roll	3.2mm — 4m Roll
3.2mm — 8m Roll	5mm — 2m Roll
5mm — 4m Roll	5mm — 8m Roll
6.5mm — 2m Roll	6.5mm — 4m Roll
6.5mm — 8m Roll	8mm — 2m Roll
8mm — 4m Roll	8mm — 8m Roll
9.5mm — 2m Roll	9.5mm — 4m Roll
9.5mm — 8m Roll	11mm — 2m Roll
11mm — 8m Roll	12.5mm — 2m Roll
12.5mm — 8m Roll	14mm — 2m Roll
14mm — 8m Roll	16mm — 2m Roll
16mm — 8m Roll	19mm — 2m Roll
19mm — 3m Roll	19mm — 8m Roll

Product Specifications

Material	Gore™ GFO® PTFE filaments with graphite based lubricant, Klingerlock braided
pH Range	0–14
Minimum Operating Temperature (°C)	–240
Maximum Operating Temperature (°C)	280
Maximum Steam Temperature (°C)	280
Maximum Static Pressure	250 bar
Maximum Dynamic Pressure	20 bar
Maximum Reciprocating Pressure	200 bar
Maximum Running Speed	18 m/s
Approvals	WRAS approved for potable water
