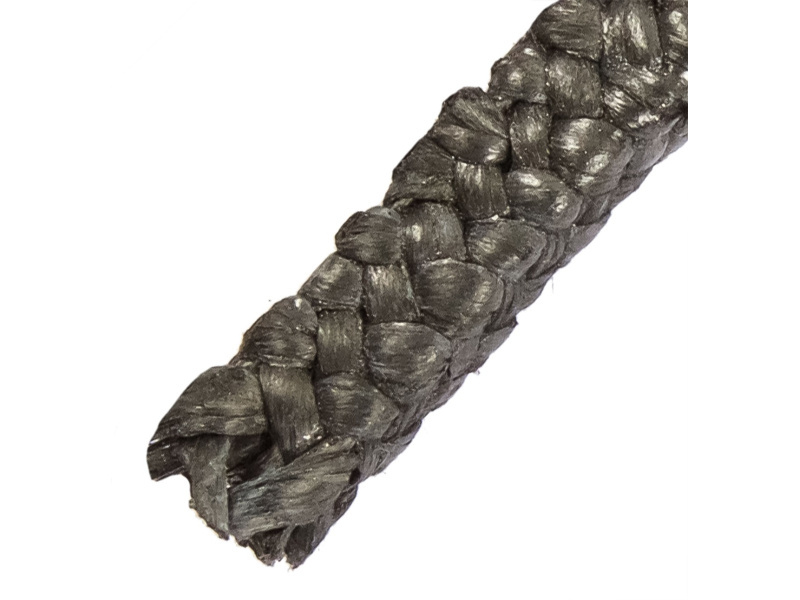

Klinger K46 Carbon Fibre Gland Packing — 8m Rolls

Klinger K46 is a high performance, carbon fibre based multiservice gland packing from the Klinger TopLine range — an optimised selection of compression packings developed to provide effective and trouble-free sealing in today's most demanding valve and pump applications. The carbon fibre yarn is impregnated with mineral oil and graphite, combining good thermal conductivity and low friction with very good chemical resistance across the full pH range of 0–14.

K46 resists virtually all media over an extensive range of pressures and temperatures and is only affected by the presence of powerful oxidisers. It is an economical alternative to pure graphite packings while delivering reliable sealing performance in both dynamic and static applications. Although frequently used on its own, K46 can also form part of a specialised composite set in conjunction with Klinger 3222 packing or Klinger 35 die-formed rings, where it acts as both supporting anti-extrusion rings and wiper rings.

Key Features

• Carbon fibre yarn impregnated with mineral oil and graphite
• Economic alternative to pure graphite packings with reliable sealing performance
• Very good chemical resistance — resistant to virtually all media, pH 0–14
• Good thermal conductivity and low friction
• Suitable for both valve and pump applications
• Can be used as part of a composite set with Klinger 3222 packing or Klinger 35 die-formed rings
• Operating temperature range –240°C to 430°C; steam to 650°C

Typical Applications

• Valve and pump gland sealing
• Pulp and paper industry — digesters, used as bottom ring and scraper in combination with graphite gaskets
• High temperature and high pressure industrial applications
• Composite packing sets as anti-extrusion and wiper rings

Please see the Details tab for full service capability specifications.

Note: Do not subject packing to maximum temperature, pressure and speed simultaneously.

Available Types
