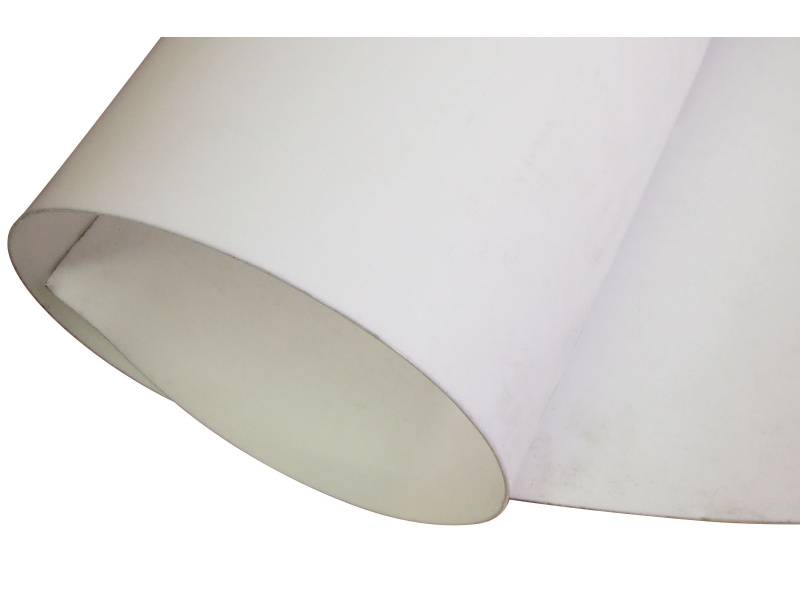

Virgin PTFE Sheet 0.5mm x 1.2m
Virgin PTFE Gasket Jointing 0.5mm x 1.2m sheet is a fluoropolymer with high chemical resistance to nearly all chemicals as well as good thermal insulation
| General Properties | |
|---|---|
| Density : | 2.15-2.20 g/cm³ |
| Flammability : | NC |
| Water Absorption : | <0.01 |
| Mechanical Properties | |
|---|---|
| Tensile Strength at 23°C : | 20-40 N/mm² |
| Tensile Strength at 150°C : | 14-20 N/mm² |
| Tensile Strain at 23°C : | 250-450% |
| Shore Hardness : | 55-65 D |
| Coefficient of Friction : | 0.05-0.2 |
| Electrical Properties | |
|---|---|
| Surface Resistivity : | 1017 |
| Dielectric Strength : | 20-40 KV/mm |
| Thermal Properties | |
|---|---|
| Coefficient of Linear Expansion : | 10-16 1/105 |
| Max. Continuous Operating Temp. : | 260°C |
| Datasheets |
|---|
