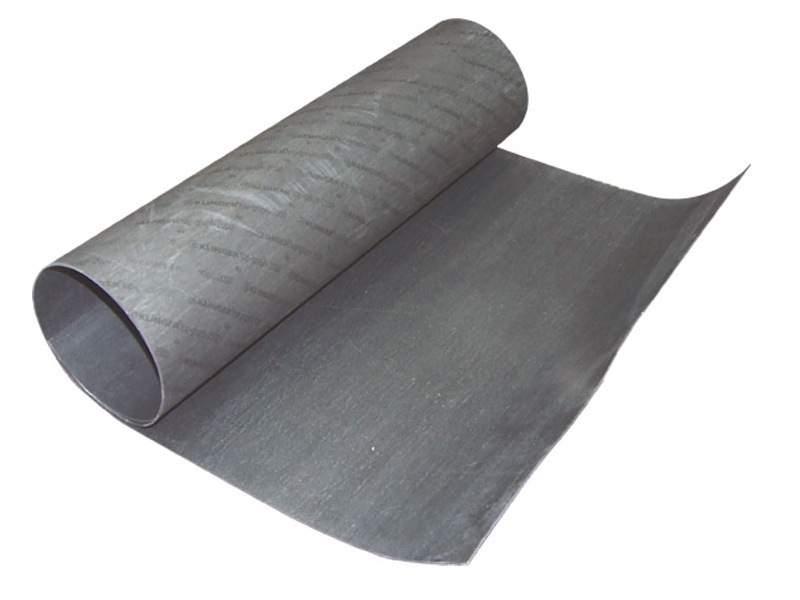

Topgraph 2000 Jointing 3mm Thick 750mm x 500mm
Topgraph 2000 Jointing 3mm Thick 750mm x 500mm
Klinger Topgraph 2000 gasket sheet jointing is a combination of expanded graphite and synthetic fibres which give it incredible sealing properties.
Temperature :
Continuous : 220°C
Maximum : 400°C
Max. Pressure :100 Bar
| Properties | Value | Test Method | Unit |
|---|---|---|---|
| Compressibility | 10 | ASTM F 36 A | % |
| Recovery | 60 | ASTM F 36 A | % |
| Stress Relaxation -50MPa, 16h/300°C |
32 |
DIN 52913 |
MPa |
| Klinger Cold/Hot Compression (50MPa) -Thickness Descrease @ 23°C -Thickness Decrease @ 250°C |
10 10 |
- - |
% % |
| Gas Leakage | <0.5 | DIN 3535/6 | ml/min |
| Chlorides (Soluble) | <50 | - | ppm |
| Thickness Increase After Fluid Immersion -Oil nr.3: 5h/150°C -Fuel B 5h/23°C Water 5h/110°C |
5 7 5 |
ASTM F 146 ASTM F 146 ASTM F 146 |
% % % |
| Density | 1.75 | - | g/cm³ |
| Datasheets |
|---|
