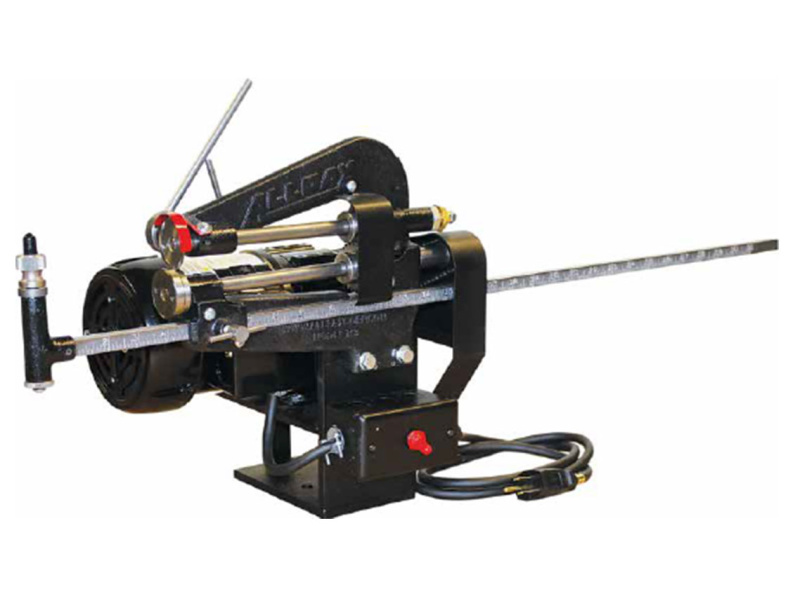

Motorized M3 Rotary-Style Gasket Cutter 230v 50/60Hz
Allpax Motorized M3 Rotary-Style Gasket Cutter
230v 50/60Hz
Cut accurate flange and ring gaskets with the Motorized M3 Rotary-Style Gasket Cutter, the perfect tool for fabricating multiple runs of the same-size gaskets quickly and efficiently. Designed primarily for non-metallic gasket materials such as cork, fibre, and rubber, up to ¼" thick. Cuts gaskets with a face width of ¼" to 7"; from 2" I.D. to 62" O.D. Mounts to any workbench with ¼" bolts (not included).
Features
- Heavy-duty, cast iron frame with 7" throat
- Precision steel components
- Durable, heat-treated tool steel, rotary cutting discs
- 1/6 Horsepower gear motor; 120 VAC
- Made in USA
Maximum Recommended Material Thickness (Inches)
| Gasket Material | Thickness |
|---|---|
| Asbestos | 0.125 |
| Cardboard (Flat) | 0.250 |
| Cloth Insert | 0.188 |
| Cork | 0.188 |
| Fiber | 0.188 |
| Kevlar | 0.010 |
| Rubber | 0.188 |
| Teflon | 0.125 |
| Datasheets | |
|---|---|
| AX7200_replacement_part_shematic.pdf | |
