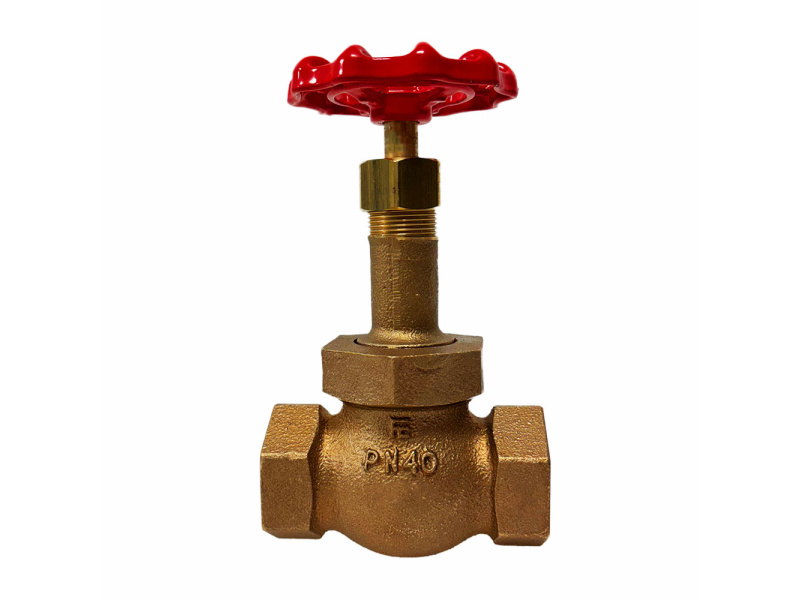

High Quality PN40 Suitable for Locomotive Manifolds

Bronze Globe Valves are highly efficient for throttling because seat and disk designs provide flow characteristics with proportionate relationships between valve lift and flow rate.

• Pressure Rating : PN40
• End Connection : BSPT
• Operating Instructions : Handwheel Operated
• Temperature Operating Range : -10°C to 260°C

Specification

Valves are manufactured in accordance with BS5154 PN40 for series A ratings. The design incorporated Duplex Stainless Steel S32205 plug type disc retained on stem by a threaded ring. The body seat is screwed in stainless steel ring. Sizes ¼ to 2" have a union bonnet.

The valve is not suitable for use on group 1 gasses on unstable fluids as defined by the Pressure Equipment Directive 97/23 EC.
